I. Product Introduction

C14500 tellurium bronze rod is based on a high-purity copper matrix, precisely alloyed with tellurium to retain copper’s inherent excellent electrical and thermal conductivity while significantly improving machinability and high-temperature stability. It offers an electrical conductivity of up to 85% IACS and a machining efficiency 1 to 2 times that of pure copper, with reduced tool sticking during turning operations, thereby greatly enhancing the cost-effectiveness of high-volume production.

II. Chemical Composition

Standards: DIN CuTeP/CW118C, UNS C14500.

Element	Content (%)	Remarks
Cu (incl. Ag)	≥ 99.9%	High purity and low impurity levels
Electrical conductivility IACS%(20℃)*	≥ 85% IACS	Excellent electrical properties
Grain size	Homogeneous, fine-grained, and custom-tailored.	Compatible with various machining and forming techniques.

III. Product Applications

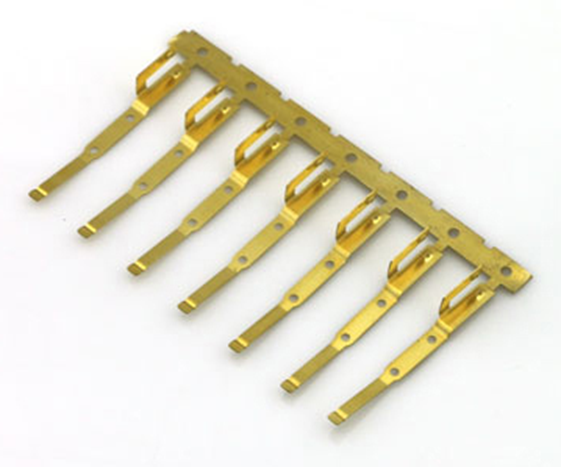

1.New Energy Vehicles (NEVs): Ideal for connector terminals, charging pile/gun conductive components, starter motor contact plates, and electromagnetic switches. Specifically used as an anti-welding alloy for contact tips, it effectively minimizes welding and material transfer during switching operations, thereby significantly extending electrical contact life.
2.Power Electronics: Employed in plasma cutting machine nozzles, high-current connectors, and avionics connectors. Its high thermal conductivity and excellent high-temperature resistance ensure reliable performance under demanding operating conditions.
3.Telecommunications & Renewable Energy: Power modules for communication base stations and solar power station connectors also benefit from its stable electrical and thermal dissipation properties.

Flexible Rod Customization   Wide range of diameters, lengths, and tolerances available to meet diverse needs in automotive electronics, connectors, and precision components.

Precision‑Turning Compatible    Excellent machinability for CNC and precision turning, ensuring high dimensional accuracy, stable processing, and reduced post‑machining effort.

Full Technical Support & Quick Response    End‑to‑end assistance from material selection and performance matching to sample verification, accelerating design optimization and material adoption.

Technical Consultation & Selection Support

1.Evaluate your operating conditions (current, temperature, machining, service life) to recommend the optimal C14500 grade, temper (H02/H04), and dimensions.
Provide customized solutions for special tolerances, mechanical properties, and non-standard sizes to match your manufacturing processes.
2.Offer full-cycle technical support – from selection and validation to optimization. Contact us for further data or advice.
Technical Consultation & Selection Support-Evaluate your operating conditions (current, temperature, machining, service life) to recommend the optimal C14500 grade, temper and dimensions.
3.Provide customized solutions for special tolerances, mechanical properties, and non-standard sizes to match your manufacturing processes.
4.Offer full-cycle technical support – from selection and validation to optimization. Contact us for further data or advice.
